GPBEST
Complete Boundary Element Engineering Analysis
System
The most efficient and accurate 3-D BEM analysis available,
developed by the people who gave the "Boundary Element Method" its name
Why bother with "Tet" meshing? ....... Just use the surface mesh!

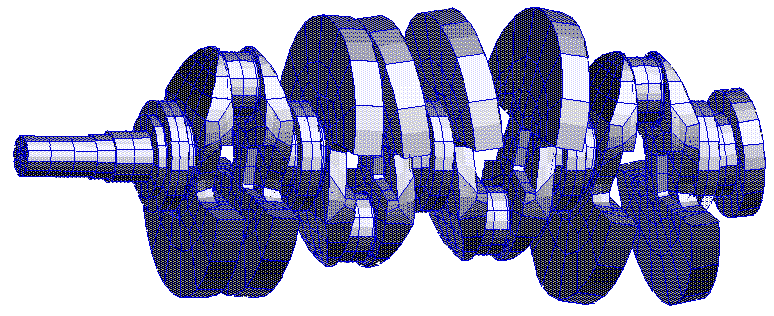

Vibration mode of a crankshaft, analyzed on an engineering workstation
Current Industry Usage
![](_themes/gpbest/radbul1.gif) | Automotive |
![](_themes/gpbest/radbul1.gif) | Aircraft |
![](_themes/gpbest/radbul1.gif) | Appliance |
![](_themes/gpbest/radbul1.gif) | Casting Molds |
![](_themes/gpbest/radbul1.gif) | Machinery |
![](_themes/gpbest/radbul1.gif) | Biomedical |
![](_themes/gpbest/radbul1.gif) | Electronic Packaging |
![](_themes/gpbest/radbul1.gif) | Injection Molds |
Areas of Analysis
![](_themes/gpbest/radbul1.gif) | Elastic Stress |
![](_themes/gpbest/radbul1.gif) | Thermal Stress |
![](_themes/gpbest/radbul1.gif) | Heat Transfer |
![](_themes/gpbest/radbul1.gif) | Forced and Free-Vibration |
![](_themes/gpbest/radbul1.gif) | Nonlinear Stress |
![](_themes/gpbest/radbul1.gif) | Fracture Mechanics |
![](_themes/gpbest/radbul1.gif) | Acoustics |
![](_themes/gpbest/radbul1.gif) | Structural Acoustics |

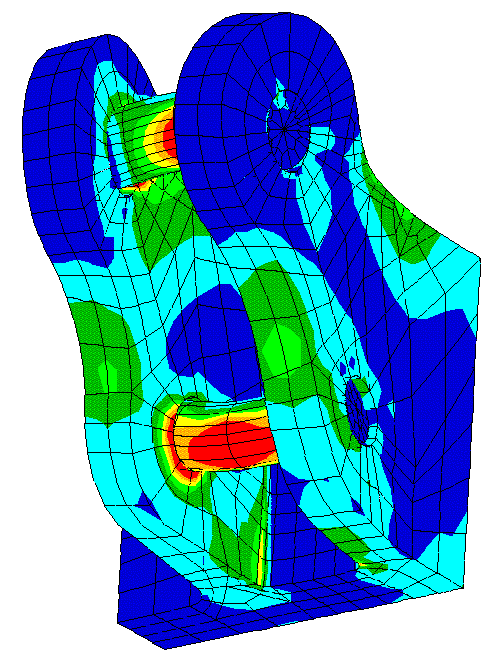

Deformed shape and stress plot of a lug (gap and contact analysis)
Blow-up of region
around the mounting
pin, illustrating pin
movement
Featuring
![](_themes/gpbest/radbul1.gif) | GPBEST Boundary Element Method Analysis Program |
![](_themes/gpbest/radbul1.gif) | BESTVIEW Graphics Program for Pre- and Post-Processing |
![](_themes/gpbest/radbul1.gif) | Translators To and From Several Popular Modeling Programs (PATRAN, I-DEAS, HYPERMESH,
etc.) |
![](_themes/gpbest/radbul1.gif) | Available for Unix Workstations |
Additional Options
![](_themes/gpbest/radbul1.gif) | Axisymmetric, 2-D, 3-D |
![](_themes/gpbest/radbul1.gif) | Gap and Contact Analysis |
![](_themes/gpbest/radbul1.gif) | Anisotropic Material |
![](_themes/gpbest/radbul1.gif) | Substructuring |
![](_themes/gpbest/radbul1.gif) | Hole and Insert Elements |
![](_themes/gpbest/radbul1.gif) | Cyclic and Planar Symmetry |
![](_themes/gpbest/radbul1.gif) | Exterior Domains |
![](_themes/gpbest/radbul1.gif) | Restart Capability |
![](_themes/gpbest/radbul1.gif) | Distributed Computing Environment (DCE) |
| |
GPBEST
|
